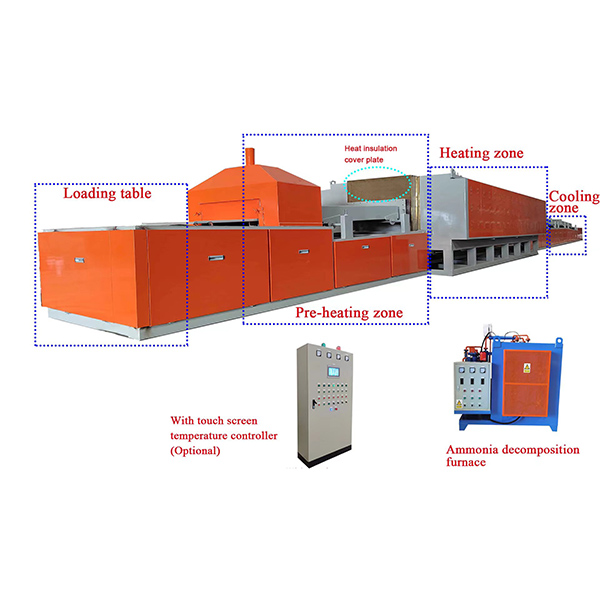

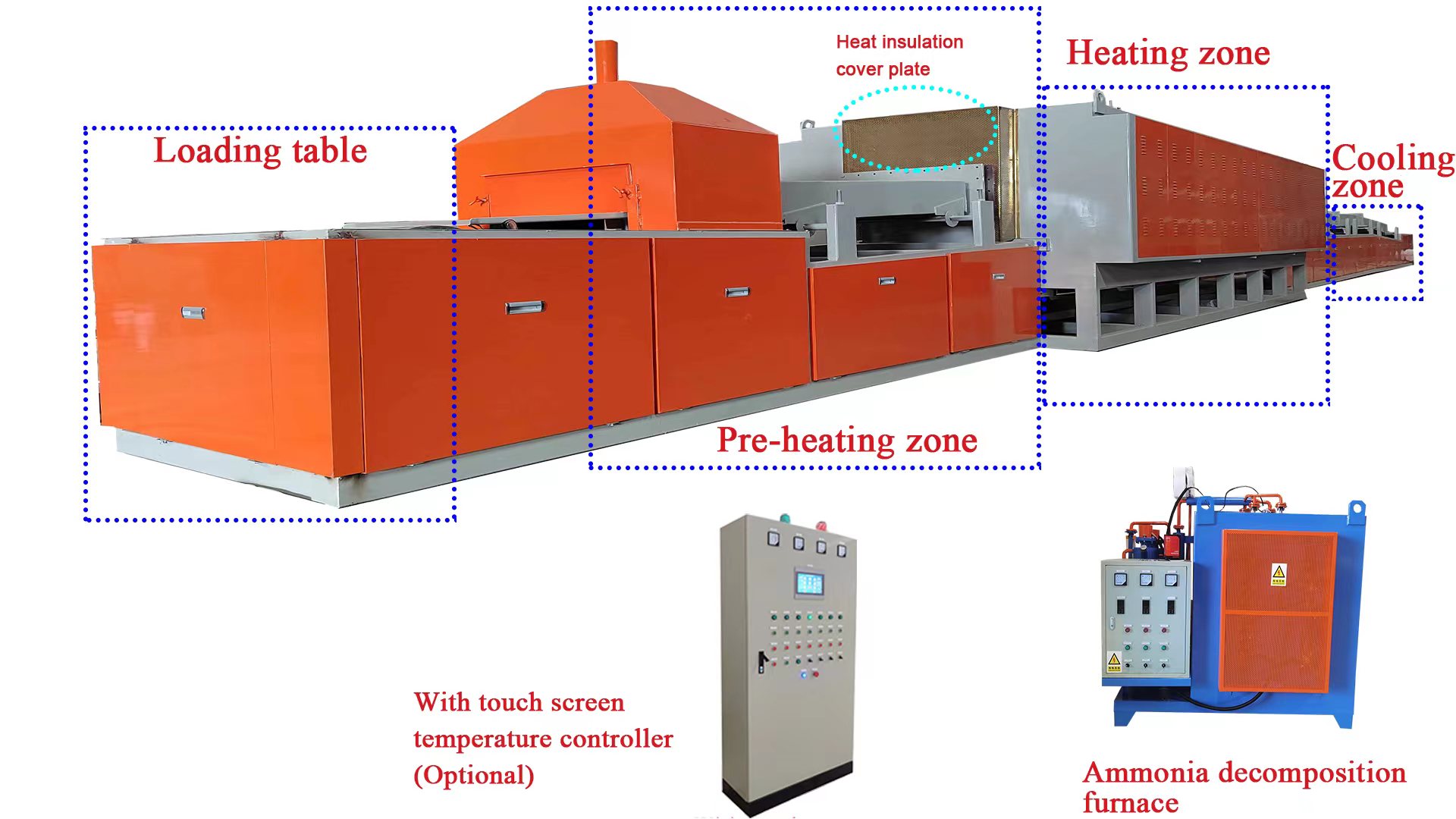

Mesh belt electric copper heat treatment annealing furnace

product details

Furnace Characteristic:

①Advanced temperature control : Intelligent thermostat, silicon-controlled rectifier and schneider electrical switches ensure temperature control precision of ±1℃;
②The heating hearth (muffle) is made of imported Sweden high-temperature resistance nickel alloy (310S);
③Heating elements: High-temp. resistance wire is used, with alumina tube frame; heating elements are arranged in an upper-lower removable to ease repair or replacing; replacing resistance wire has no impact on production;
④Protective gas: mixture (hydrogen 75% and oxygen 25%) decomposed from liquid ammonia gets into the hearth and reachesgas protection effect; Product surface will become brightness and won’t be oxidized after heat treatment.

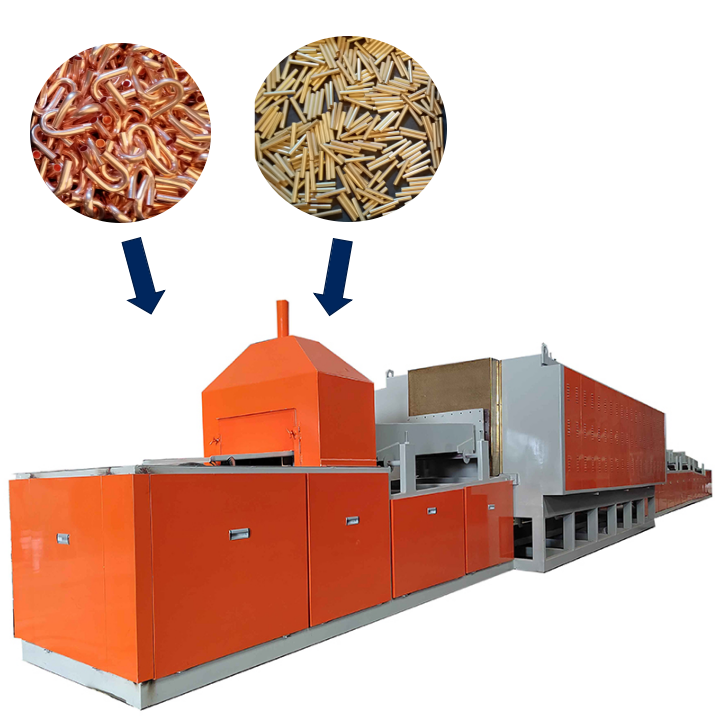

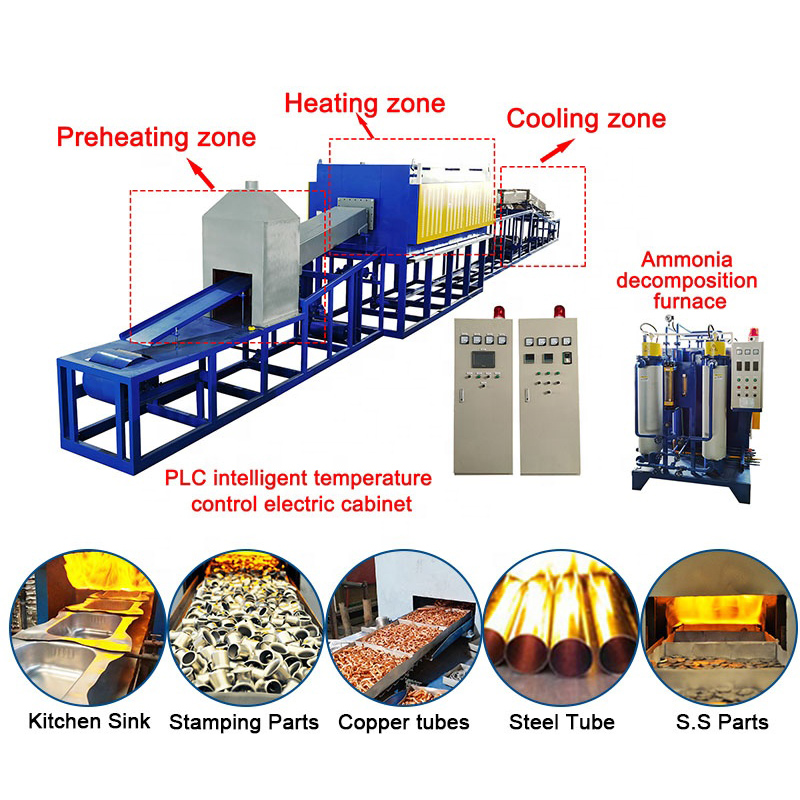

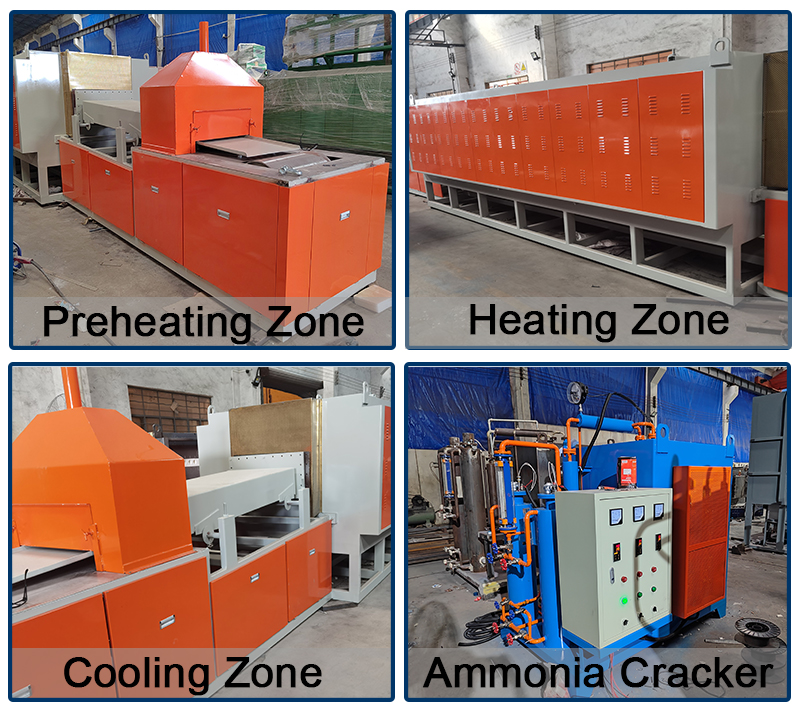

The working principle of copper continuous annealing furnace is relatively simple. Copper strip or copper material enters the heating chamber through a conveyor belt, and after being heated by a heater in the heating chamber, it reaches the required annealing temperature. Next, the copper material is kept in the heating chamber for a certain period of time to ensure complete annealing. Finally, the copper material is cooled by a cooler at the outlet to reduce its temperature to room temperature, thus completing the annealing process.
